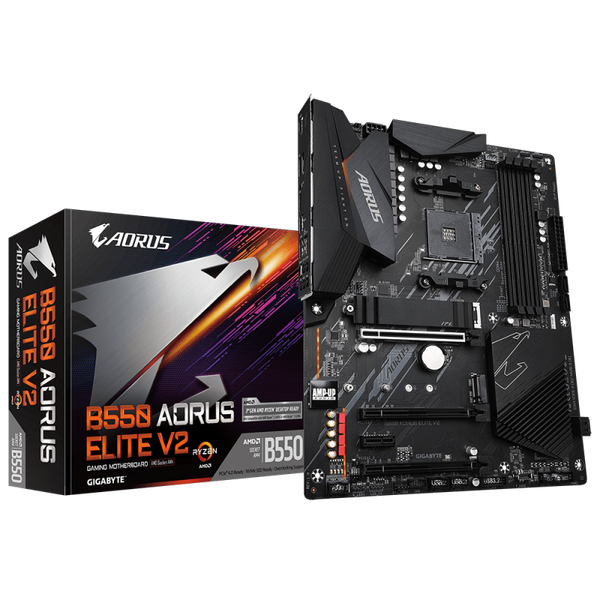

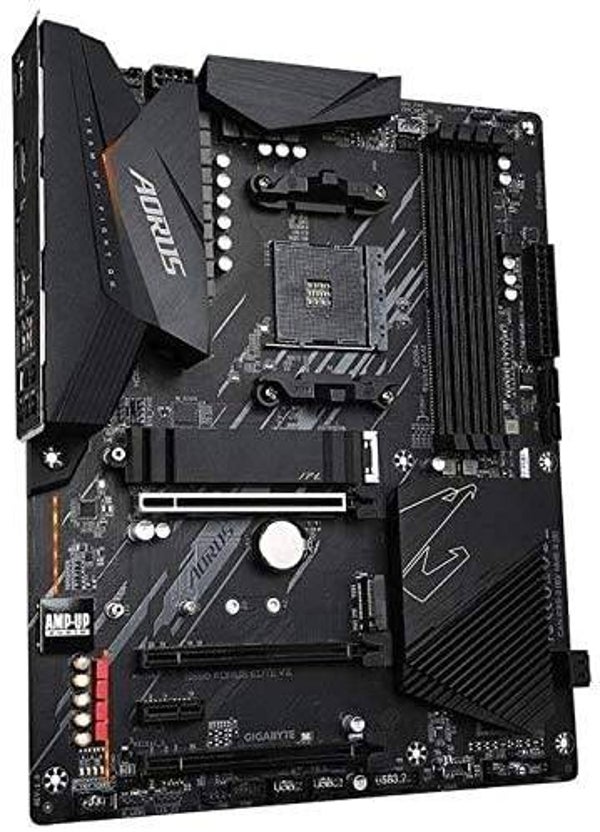

GIGABYTE B550 AORUS Elite V2

GIGABYTE B550 AORUS Elite V2
129,99 €

À propos de cet article

  • B550 AORUS ELITE V2
  • Poids du colis: 1.0 Kg
  • Fabriqué en Chine
  • Quantité de article: 1
  • Facteur de forme : ATX ; 30,5 cm x 24,4 cm

Les cartes mères GIGABYTE B550 optimisent le potentiel de votre PC grâce à la technologie AMD StoreMI. StoreMI permet de booster les performances des périphériques de stockage traditionnels afin de réduire le temps de démarrage du système et d'améliorer l'expérience utilisateur. Cet utilitaire associe les performances des SSDs à la capacité de stockage des HDDs en un disque unique afin d'optimiser les vitesses de lecture / écriture, transformant ainsi votre PC en un système à hautes performances.

Caractéristiques :

  • Processeur

    1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B550

  • Mémoire

    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
      * ECC memory (ECC mode) support varies by CPU
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)


  • Carte Graphique Intégrée

    Integrated Graphics Processor:
    1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
      * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB


  • Audio

    1. Realtek® ALC1200 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out

  • Réseau

    1. Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

  • Port d'expansion

    1. 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
      - AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
      - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
      - Supporting PCIe 3.0 x2 mode
    3. 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
      - Supporting PCIe 3.0 x1 mode
    4. 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
      - Supporting PCIe 3.0 x1 mode

  • Interface de Stockage

    1. 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
      - AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
      - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
    2. 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
      - Supporting SATA and PCIe 3.0 x4/x2 SSDs
    3. 4 x SATA 6Gb/s connectors, integrated in the Chipset:
      - Support for RAID 0, RAID 1, and RAID 10

  • USB

    CPU:
    1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    2. 2 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    1. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
    2. 1 x USB 3.2 Gen 1 port on the back panel
    3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    4. 2 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports available through the internal USB headers

  • Connecteurs d'entrées/sorties internes

    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 2 x M.2 Socket 3 connectors
    4. 4 x SATA 6Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x water cooling CPU fan header
    7. 3 x system fan headers
    8. 1 x CPU cooler LED strip/RGB LED strip header
    9. 2 x addressable LED strip headers
    10. 2 x RGB LED strip headers
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
    14. 1 x USB 3.2 Gen 1 header
    15. 2 x USB 2.0/1.1 headers
    16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    17. 1 x Clear CMOS jumper
    ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.


  • Connecteur du Panneau Arrière

    1. 1 x DisplayPort
    2. 1 x HDMI port
    3. 2 x USB 3.2 Gen 2 Type-A ports (red)
    4. 3 x USB 3.2 Gen 1 ports
    5. 2 x USB 2.0/1.1 ports
    6. 1 x Q-Flash Plus button
    7. 1 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 5 x audio jacks

  • Contrôleur d'Entrée/Sortie

    1. iTE® I/O Controller Chip

  • Monitorage Matériel

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS

    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Fonctionnalités Exclusives

    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install

  • Logiciels Fournis

    1. Norton® Internet Security (OEM version)
    2. Realtek® 8125 Gaming LAN Bandwidth Control Utility

  • Système d'Exploitation

    1. Support for Windows 10 64-bit

  • Dimensions

    1. ATX Form Factor; 30.5cm x 24.4cm
